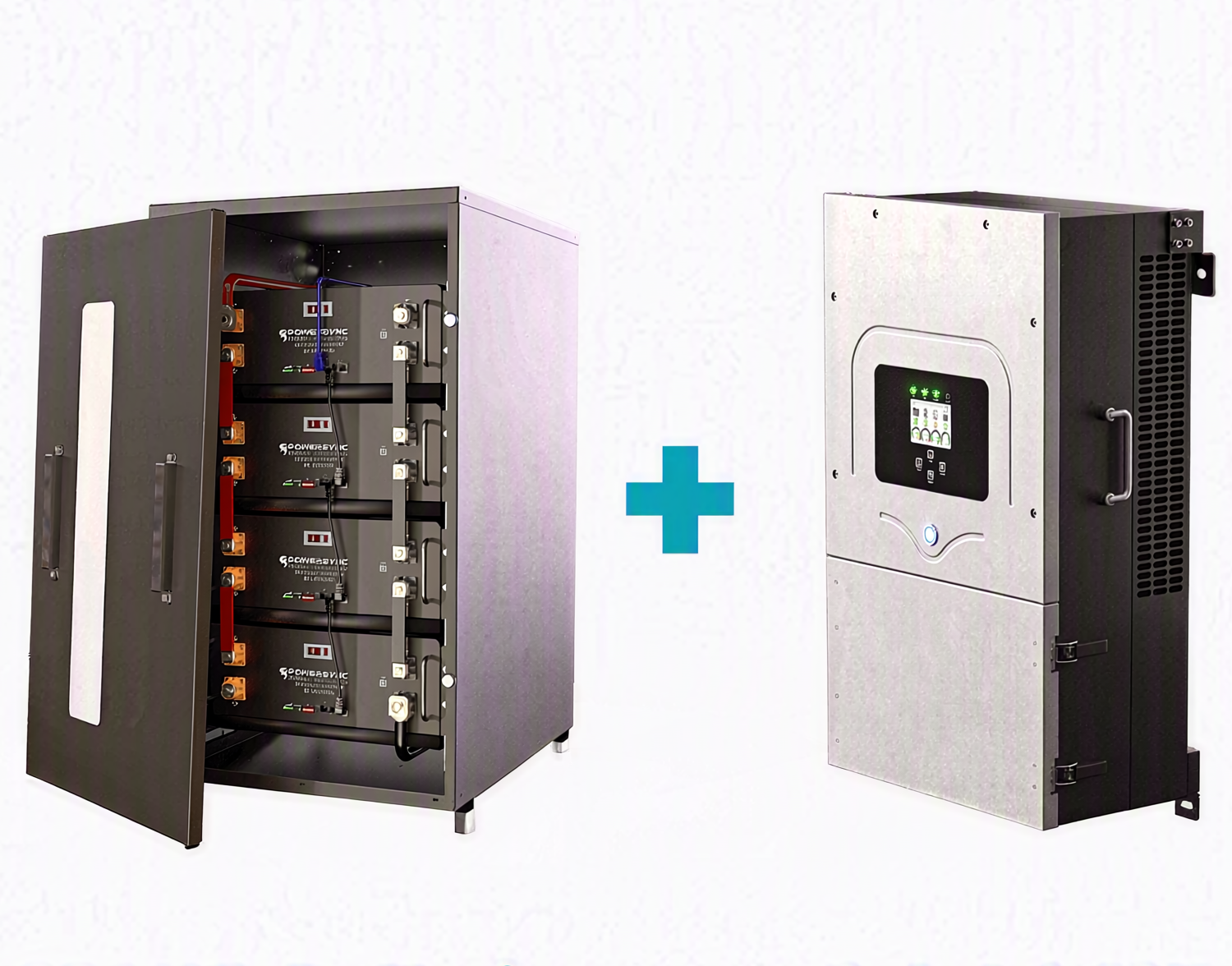

VoltPak VP-8000H
Whole-home hybrid.
One system.
8 kW hybrid inverter, 20 kWh LiFePO4 battery rack, and 530 W monocrystalline solar panels in a single procurement package — ~5 hours of backup at 50% load.
Coming Soon · Pricing announced at launch

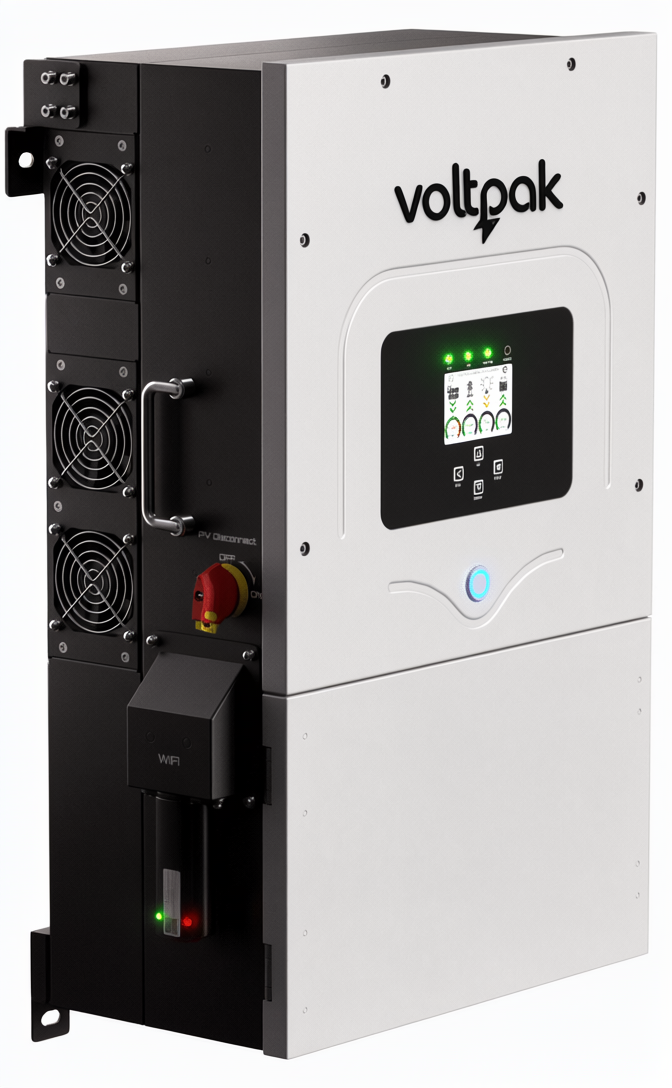

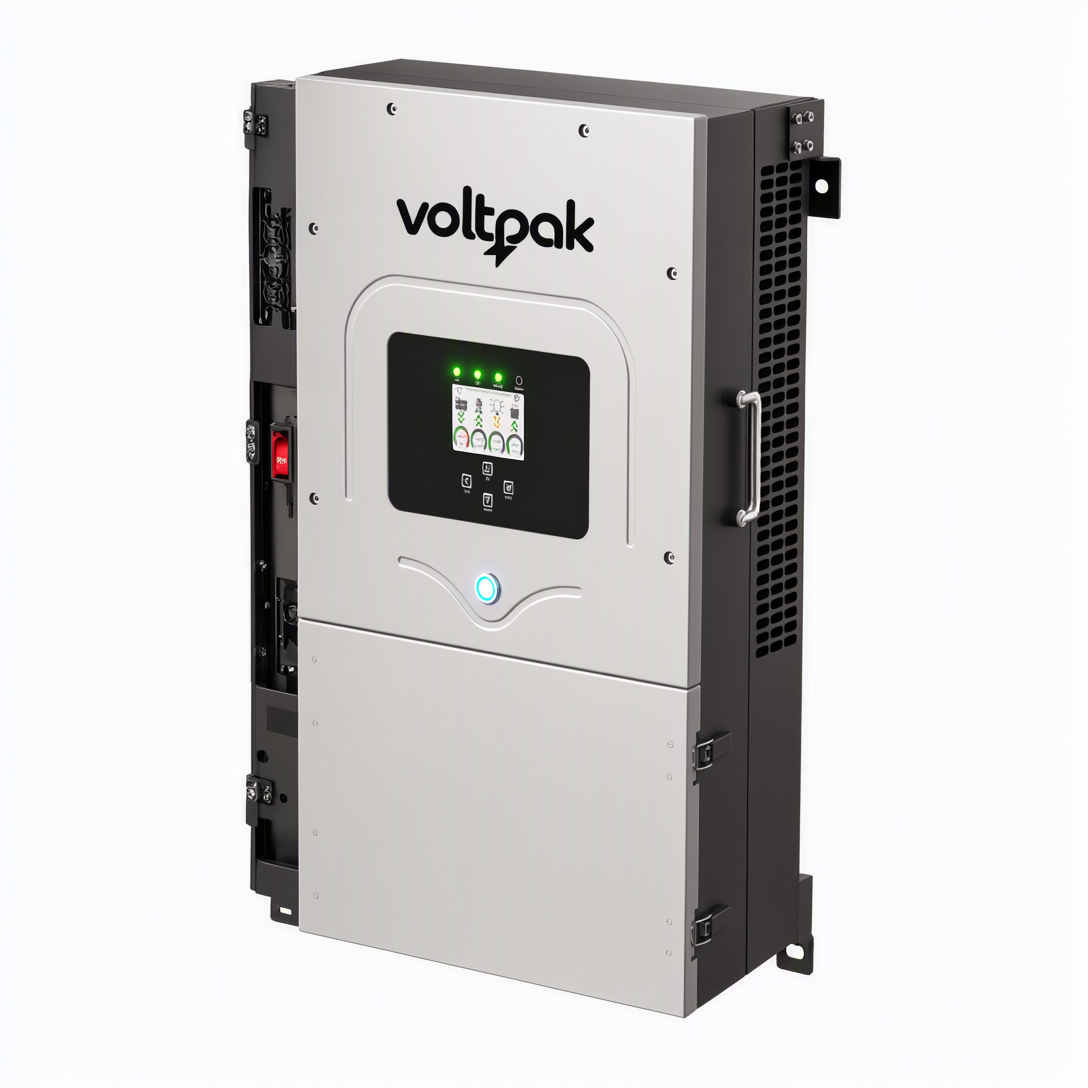

Dual-MPPT hybrid inverter
8 kW. Two solar trackers.
Two independent 6 kW MPPT channels accept up to 12 kW of PV across split roof orientations. 97.6% peak conversion efficiency. Grid-tied or off-grid — the inverter handles both modes and switches in under 20 ms during an outage.

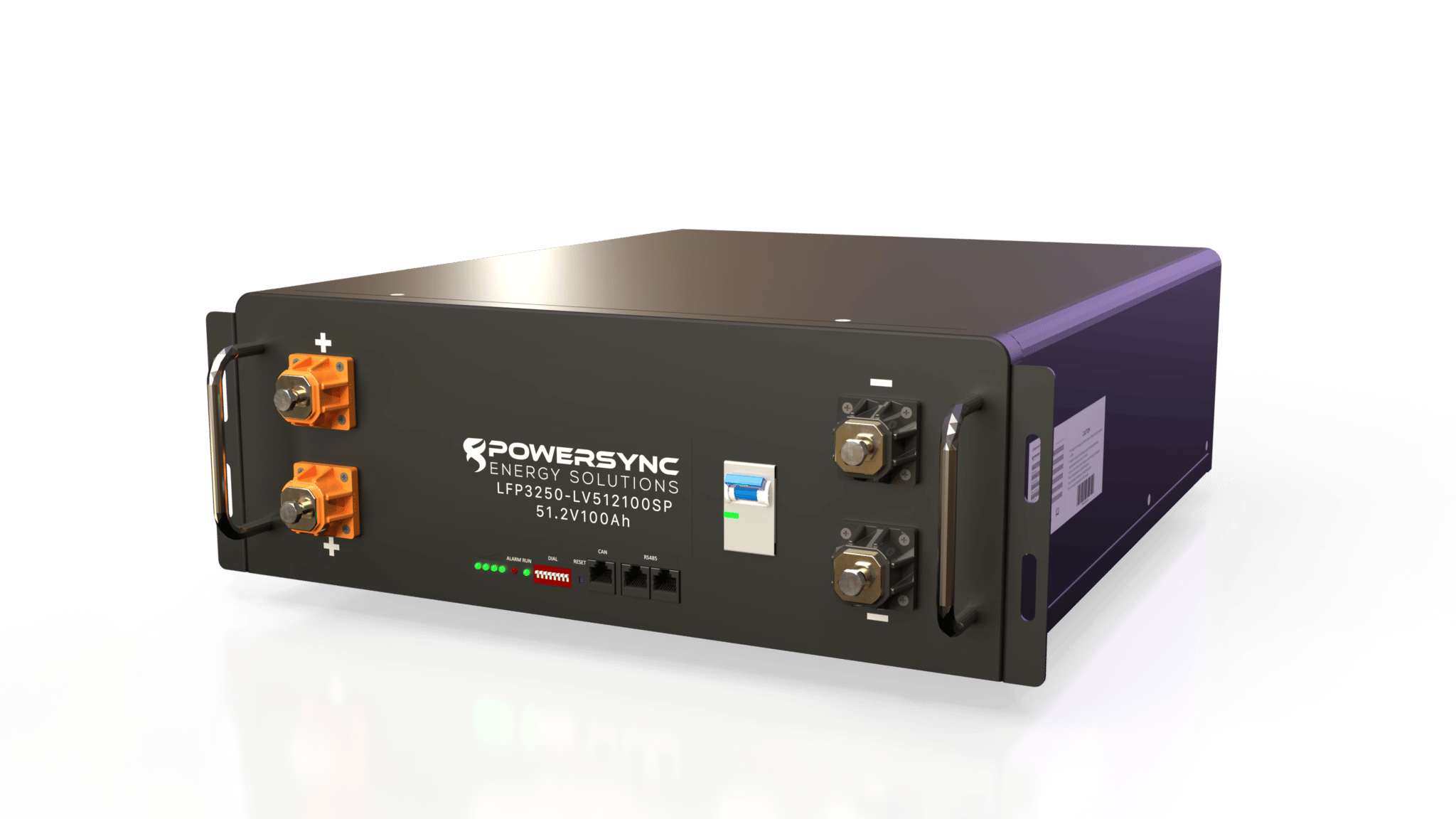

20 kWh rack-mounted LFP
4 modules. 6,000 cycles.
Four 5 kWh LiFePO4 modules in a floor-standing rack cabinet. Integrated smart BMS with cell-level balancing and CAN/RS485 communication for adaptive charge curves. 100% depth of discharge supported, 95%+ round-trip efficiency.
530 W monocrystalline PERC
21.5% efficiency. 25-year output warranty.
144 half-cut monocrystalline PERC cells deliver 530 W per panel at 21.5% module efficiency. Anti-reflective tempered glass, IP68 junction box, and MC4 connectors. Rated for 2,400 Pa wind and 5,400 Pa snow loads.
Smart monitoring
Wi-Fi. 4G. Bluetooth.
Real-time system monitoring via mobile app and web portal. Track solar generation, battery state, grid consumption, and backup status from anywhere. CAN and RS485 interfaces support third-party energy management integration.
In the box
Everything you need. Nothing you don't.
- VP-8000H Hybrid Inverter (8 kW)
- VP-BAT-20K Battery Rack (4 × 5 kWh LFP modules)
- VP-SP-530 Solar Panel(s) (530 W each)
- CAN / RS485 communication cables
- AC & DC wiring harnesses
- Mounting hardware (inverter wall-mount + panel rail kit)
- Installation manual & commissioning guide
- 2-year warranty documentation
Specs
Every number, documented.
- Rated output
- 8,000 W / 8,000 VA
- Peak power (off-grid)
- 16,000 W (2× rated, 10 s)
- Max efficiency
- 97.6%
- Euro efficiency
- 97.0%
- MPPT channels
- 2 (2 strings each)
- Max PV input
- 12,000 W
- PV voltage range
- 120–500 V (max 550 V)
- Max PV current
- 18 + 18 A
- Battery voltage range
- 40–60 V (nominal 48 / 51.2 V)
- Max charge / discharge
- 120 / 120 A
- AC output voltage
- 220 / 230 V
- Max AC passthrough
- 63 A
- THDi
- <3% of nominal
- Grid connection
- L + N + PE
- Transfer time
- <20 ms
- Chemistry
- LiFePO4 (LFP)
- Nominal capacity
- 20 kWh
- Nominal voltage
- 51.2 V (48 V system)
- Voltage range
- 44.8–57.6 V
- Configuration
- 4 × 5 kWh modules (rack-mounted)
- Max charge / discharge
- 200 / 200 A (10,240 W)
- Depth of discharge
- 100% (recommended ≤80%)
- Cycle life
- ≥6,000 @ 80% DoD, 25 °C
- Round-trip efficiency
- ≥95%
- BMS
- Integrated smart — cell balancing, OCP/OVP/OTP/SCP
- Communication
- CAN 2.0 / RS485
- Rated power
- 530 W (STC)
- Efficiency
- 21.5%
- Cell type
- Monocrystalline PERC, 144 half-cut
- Voc
- 49.8 V
- Isc
- 13.90 A
- Vmp
- 41.5 V
- Imp
- 12.78 A
- Max system voltage
- 1,500 V DC
- Temp coefficient (Pmax)
- -0.35 %/°C
- Panel dimensions
- 2,279 × 1,134 × 35 mm
- Panel weight
- 28.5 kg
- Connector
- MC4-compatible
- Inverter protections
- DC reverse polarity, OCP, OVP, OTP, SCP, anti-islanding, arc-fault, RCD
- Surge protection
- Type II (DC + AC)
- Inverter IP rating
- IP65
- Battery IP rating
- IP55
- Panel junction box
- IP68
- Inverter dimensions
- 456 × 750 × 268.5 mm
- Inverter weight
- 52 kg
- Battery cabinet
- 600 × 900 × 580 mm
- Battery weight
- ≈240 kg
- Inverter cooling
- Intelligent air cooling
- Noise
- <60 dB
- Operating temp (inverter)
- -25 to +60 °C
- Operating temp (battery charge)
- 0 to +55 °C
- Operating temp (battery discharge)
- -20 to +60 °C
- Communication
- RS485 / RS232 / CAN
- Monitoring
- Wi-Fi / Bluetooth / 4G / LAN (optional)
- App
- Mobile app + web portal
- @ 50% load (4 kW)
- ~5 hours
- @ 100% load (8 kW)
- ~2.4 hours
- Charging
- Solar + grid hybrid, automatic priority
Certification roadmap
Not yet certified. These are the standards we are designing to and plan to pursue before shipping. No certification has been granted and no listing should be assumed.
VoltPak VP-8000H
8 kW inverter + 20 kWh battery + 530 W solar. Whole-home power independence.
Pricing announced at launch · Join the list for first access
- Be the first to know when it ships
- Early-access window before public launch
- No spam - only launch updates for this product
FAQ
Answers, before you ask.
How long will the battery last during a power outage?+
At 50% load (4 kW — typical for fridge, lights, router, and a few circuits) the 20 kWh battery provides approximately 5 hours of backup. At full 8 kW load, expect about 2.4 hours.
Can it go fully off-grid?+
Yes. The VP-8000H supports off-grid operation with automatic solar priority charging. The dual-MPPT inverter accepts up to 12 kW of PV input for fast daytime recharge.
What does the 3-in-1 package include?+
The VP-8000H is a complete system: an 8 kW hybrid inverter, a 20 kWh rack-mounted LFP battery (4 × 5 kWh modules), and 530 W monocrystalline solar panels with all wiring and mounting hardware.
Is professional installation required?+
Yes. The VP-8000H involves high-voltage AC/DC wiring and should be installed by a licensed electrician or certified solar installer. The system ships with a full commissioning guide.
How many solar panels can the inverter handle?+
The dual-MPPT inverter supports up to 12 kW of PV across two independent 6 kW trackers, each with two string inputs. This allows split-orientation roof layouts.
What's the battery warranty?+
2 years or 6,000 cycles, whichever comes first, with a guarantee of ≥70% retained capacity at end of warranty. The inverter and panels also carry 2-year product warranties, with the panels additionally warranting ≥80% output at year 25.
Ready when the lights aren't.
Coming Soon · Free shipping · 5-year warranty
